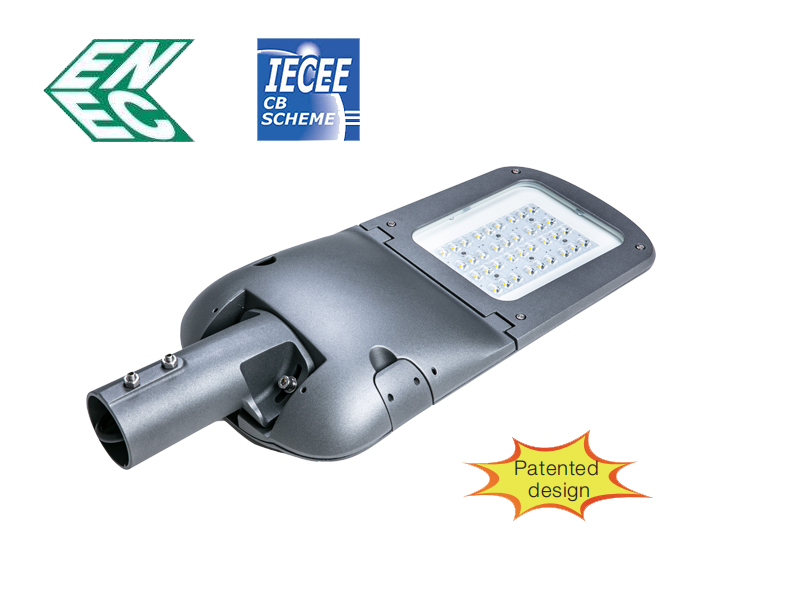

Superline LED Street lights are a result of genuine cooperation with the clients, modern and fashionable stream designed LED street light, High-quality ADC-12 aluminum die-casting, and powder painting, which are always charming on urban roads. They have a smooth type of roof for excellent self-cleaning, to avoid bird dropping, falling leaves, and sand storms.

Well, thanks to the toolless opening clips, we can easily open the driver chamber for easy maintenance. They equipped with high quality LED power supply from Meanwell or Inventronics, including 6KV of surge protection, 10/20KV is possible with additional SPD. And with the help of optic lens, these LED lights, used top brand LED chips such as Cree XTE or Lumileds 5050 for main lighting source, can apply to kinds of road lighting requirements.

With the confidence in the prefect structure and good heat sink technology, we can ensure a long lifetime, 5 years warranty is always committed to our global customers. What’s more, they have strictly tested for LVD, EMC by TUV Rheinland, and successfully got ENEC, CE, SAA certificates.

Leboda Lighting is one of professional LED street light manufacturers. Superline LED street light wattage including 30W-240W. 20W LED street light, 30W LED street light, 50W LED street light, 60 W LED street light, 90W LED street light, 100W LED street light, 120W LED street light, 150W LED street light are very popular. As a professional LED out door light supplier, we hope to provide you high-end quality at competitive price and best service.

Key Features

● Patented modern and fashionable streamline design

● Smooth type of roof is for excellent self-cleaning, to avoid bird droppings,falling leaves and sand storms.

● Rib-free outside housing,but good heat sink technology to enable the whole body with highest rate of heat

● Dissipation and to make sure that LED component is working at lower junction temperature.

● High quality ADC 12 aluminum die-casting and power painting.

● Top brand of LED components,CREE XTE or Lumileds 5050SMD

● Correct optic lens family from LEDiL or LedLink to satisfy any kind of road requirement

● High quality LED power supply from Meanwell or Inventronics with 5-year warranty,including 6KV of surge

● Toolless clips of opening for easy maintenance.

Applications

The streets main roads, secondary road, expressway, the national roads, square, factories and other lighting places

Specifications

Product Model	LBD-S05-60
Rated Power	60W
Frequency Range	50/60HZ
Power Factor	≧0.9
Efficiency (lm/W)	130-150Lm/w
Luminous Flux(lm)	8400Lm±5%
Working Temp	-40°C—50°C
Working Humidity	10%~90%RH
Color Temperature	3000-6500K
Color Rendering Index	Ra≥70
Life Span	≥50000Hrs
Protection Grade	IP66
Net Weight(kg)	5.5kg
Gross Weight(kg)	6.5kg
Package box size(mm)	660340180mm
