Tunnel light LBD-FL07-140

●Angle Bracket, easy to install.
●Excellent Heat Dissipation, Pure Aluminum Shape.
●Waterproof IP66/Dust proof/Explosion proof/IK09

Get a Quote Now

Description

Reviews

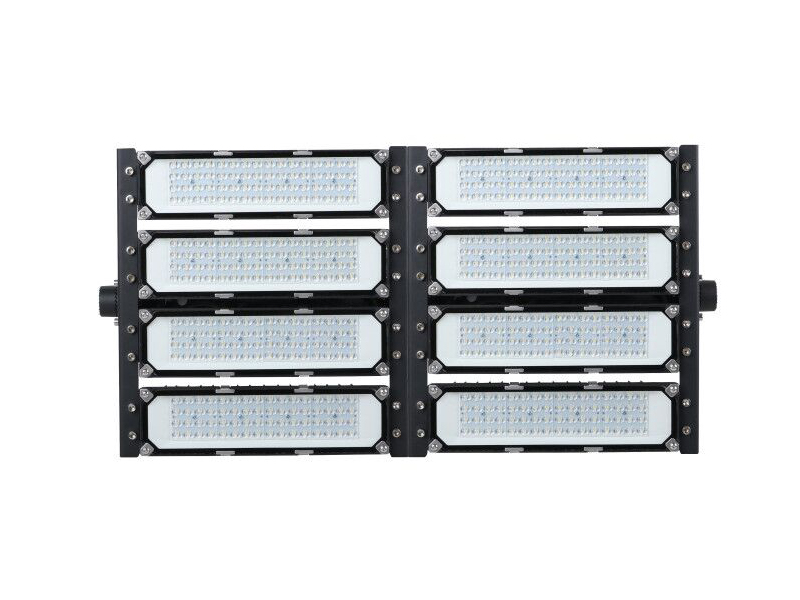

Leboda FL07 Flood Tunnel light series are easy to install and operate systems, cost efficient systems, optimisation of safety conditions.

Leboda offers a comprehensive range of tunnel luminaires. Super bright energy saving, LED flood tunnel light F07 series use Philips lumileds with inventronics driver, the brightness can reach 130-140lm/w. 30°, 60°, 90°or 120°beam angles for different applications, no shadows and anti-glare.

From simple standard on/off operation, to complex step dimming or security networks.

The aluminium die-casting body, tempered glasses, and steel bracket compose the exterior of this floodlight. The U-shaped bracket can be rotated 180°degrees, flexibly adjusted.

Excellent heat dissipation, the sturdy die-casting aluminum shell and tempered glass, the back design of the thick fine-type radiator, which makes the tunnel light have a long lifespan.

Matters needing attention

Before installing the lighting fixtures, please read this instruction manual carefully.

The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.

Lamps should always be installed or replaced carefully.

Please check the local voltage in accordance with the product requirements before installation.

Revamping only can be done when the power is off and the lamp is completely cooled down.

When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.

Don’t cover the fixtures with flammable materials.

Replace should be made by the manufacturer or his service agent or certified electrician in order to avoid a hazard.

Temperature Characteristics T-ambient 25℃

Temperature Operating -20~+45℃

Storage -40~+60℃

Specifications
