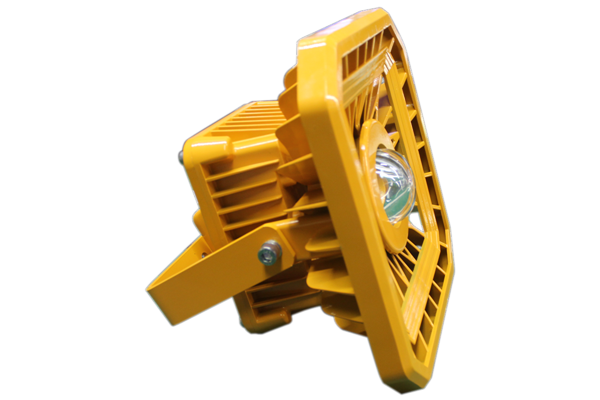

Security LED Ex-Proof Light-EPL03 series
High Power, Security,Brightest,Outdoor lights,High Lumen
Description
Reviews
Key Features
● Patented design for heat dissipation to ensure life of light source up to 50000 hours
● BRIDGELUX LED chip; die-casting aluminum housing, with anti-static and anti-corrosion powder painting, high explosion proof grade of flameproof type, dust-proof, waterproof, lens made of high tempered glass which is special designed to different beam angle
● Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than traditional light
● Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image
● Beautiful appearance , several types of installation methods available
Applications
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf tunnel, pumping station, substation, the military base, etc. Zone I and Zone II Hazardous locations, Zone 20,Zone 21,Zone 22 and II A, II B, II C, explosive gas atmosphere
Specifications
| Product Model | BD-EPL03 |
| Rated Power | 60/80/100/120W |
| Ex mark | Ex dIIB T5 Gb/Ex IIIC T95℃ |
| IP grade | IP66 |
| Corrosion-proof grade | WF2 |
| Input voltage | AC110/220V (applied to 90-305V) |
| Input frequency | 50/60Hz |
| Beam angle | 60/90/120/140(transversely)70(vertically) |
| Actual luminous efficiency | 90-100lm/w (LED itself :120-130lm/w) |
| Color Temperature | 2700-6500K |
| Color Rendering Index | Ra≥75 |
| Life Span | ≥50000Hrs |
| Ambient temperature | -40-50 degree |
| Lamp Weight(kg) | 6.3Kg |
| Lights Dimension(mm) | 300*300*226mm |
