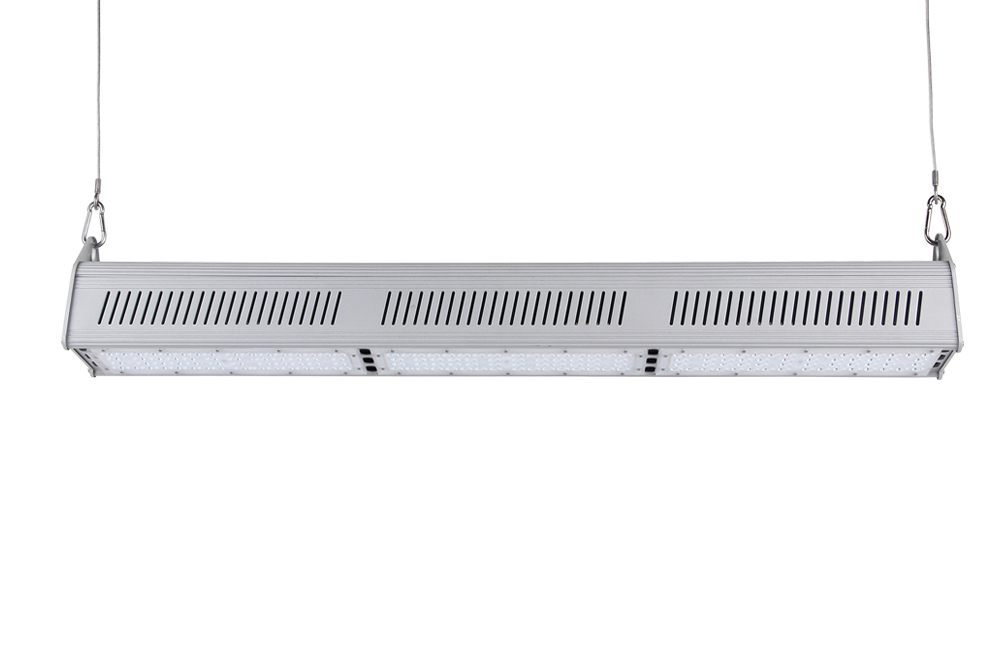

LED Linear High Bay Light (50W-250W)

LED Linear High Bay Light multi optical lense with beam angle

Description

Key Features

● High quality aluminum alloy housing

● Excellent heat dissipation with good connection between LED models and housing

● Waterproof degree IP65

● Two different fixing

● 7 kinds of optical lense with beam angle 60*120,60*90,30*70,155*80,90,60 and 30 degree to meet different optics requirement.

Applications

Workshop, factory, warehouse, highway toll station, gas station, super market, exhibition hall and other industrial lighting

place

Specifications

Product Code	BD-540050L	BD-5400100L	BD-5400150L	BD-5400200L	BD-5400250L	BD-5400300L
Input Wattage	50W	100W	150W	200W	250W	300W
LED quantity	56	112	168	224	280	336
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Luminous Flux(lm)	7500Lm±5%	15000Lm±5%	22500Lm±5%	30000Lm±5%	37000Lm±5%	44500±5%
Input Voltage	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.9	PF≥0.9	PF≥0.9	PF≥0.9	PF≥0.9	PF≥0.9
Color Rendering Index	Ra≥70	Ra≥70	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperatura of Working Condition	-35-50℃	-35-50℃	-35-50℃	-35-50℃	-35-50℃	-35-50℃
Humidity of Working Condition	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%
LED Lifetime	50000h	50000h	50000h	50000h	50000h	50000h
Protection Grade	IP65	IP65	IP65	IP65	IP65	IP65
Net Weight	1.50kg	2.80kg	3.80kg	5.0kg	6.0kg	7.0kg
Gross Weight	2.0kg	3.50kg	4.50kg	5.80kg	7.0kg	8.0kg
Packing size	385165195mm	650165195mm	920165195mm	1185165195mm	1450165195mm	1715165195mm
