LED Street Light New Jass Series

High Lumen LED Street Light-New JASS small 60W 80W 90W

5 years warranty IP66

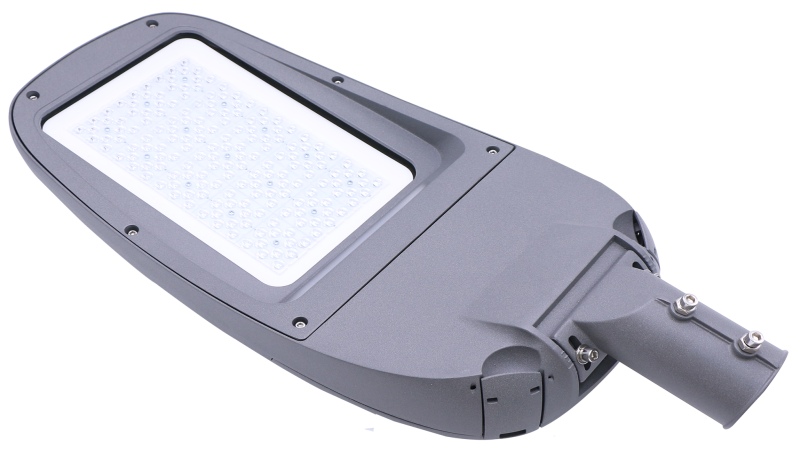

High Lumen LED Street Light-New JASS small 60W 80W 90W

Description

Reviews



Key Features

● High intensity die-cast aluminum body, impact grade reaches IK08
● Tempered glasses, steel bracket
● Modern stream-line design, nice surface
● Adjustable head, mounting inclination up to 15°
● With external surge protector lamp can reach 10KV
● CREE LED and MEANWELL driver provide reliable quality with 5-year warranty
● Big choices of different optics available allows to choose optical solutions for every application



Applications

The streets main roads, secondary road, expressway, the national roads, square, factories and other

lighting place


Specifications
Product Model BD-560060SJN BD-560080SJN BD-560090SJN
Input Wattage 60W 80W 90W
LED quantity 36 48 48
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux(lm) 8400±5% 11200±5% 12600±5%
Input Voltage AC100-277V AC100-277V AC100-277V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.9 PF≥0.9 PF≥0.9
Color Rendering Index Ra≥70 Ra≥70 Ra≥70
Temperatura of Working Condition -40-50℃ -40-50℃ -40-50℃
Humidity of Working Condition 20%-90% 20%-90% 20%-90%
LED Lifetime 5000h 5000h 5000h
Protection Grade IP66 IP66 IP66
Installtion Pipe Diameter φ48mm φ48mm φ48mm
Installtion Height 4-6m 4-6m 4-6m
Net Weight 3.0kg 3.0kg 3.0kg
Gross Weight 4.0kg 4.0kg 4.0kg
Packing size 520*160*120mm 520*160*120mm 520*160*120mm
