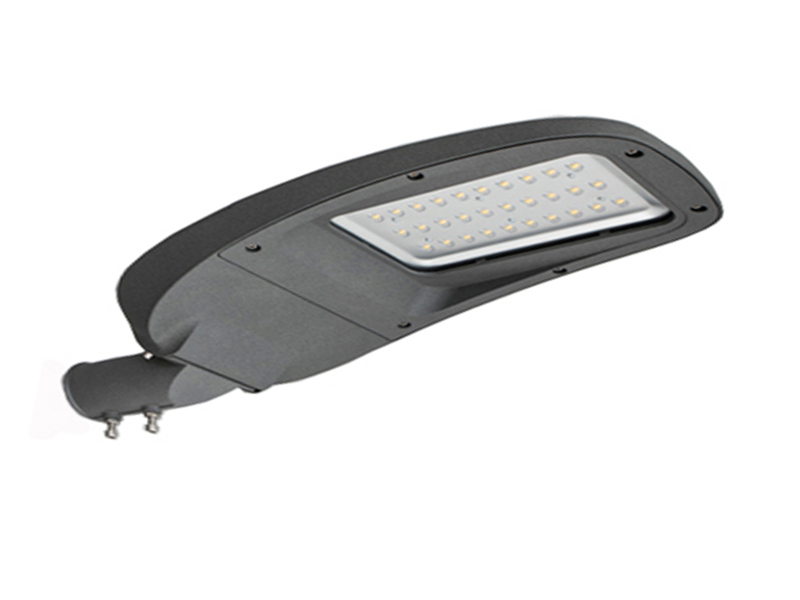

High Lumen LED Street Light-JASS series 60W

TUV certified CE approval, Patented steamline shape, High quality LEDs and power supply,5years warranty.

Description

Key Features

● High intensity die-cast aluminum body, impact grade reaches IK08

● Tempered glasses, steel bracket

● Modern stream-line design, nice surface

● Adjustable head, mounting inclination up to 15°

● With external surge protector lamp can reach 10KV

● CREE LED and MEANWELL driver provide reliable quality with 5-year warranty

● Big choices of different optics available allows to choose optical solutions for every application

Applications

The streets main roads, secondary road, expressway, the national roads, square, factories and other

lighting place

Specifications

Product Model	BD-560060SJ	BD-560080SJ	BD-5600100SJ
Input Wattage	60W	80W	100W
LED quantity	72	96	120
Color Temperature	3000-6500K	3000-6500K	3000-6500K
Luminous Flux(lm)	7800±5%	10400±5%	13000±5%
Input Voltage	AC100-277V	AC100-277V	AC100-277V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.9	PF≥0.9	PF≥0.9
Color Rendering Index	Ra≥70	Ra≥70	Ra≥70
Temperatura of Working Condition	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%	20%-90%	20%-90%
LED Lifetime	5000h	5000h	5000h
Protection Grade	IP66	IP66	IP66
Installtion Pipe Diameter	φ48mm	φ48mm	φ48mm
Installtion Height	4-6m	4-6m	4-6m
Net Weight	3.0kg	3.0kg	3.0kg
Gross Weight	4.0kg	4.0kg	4.0kg
Packing size	520160120mm	520160120mm	520160120mm
