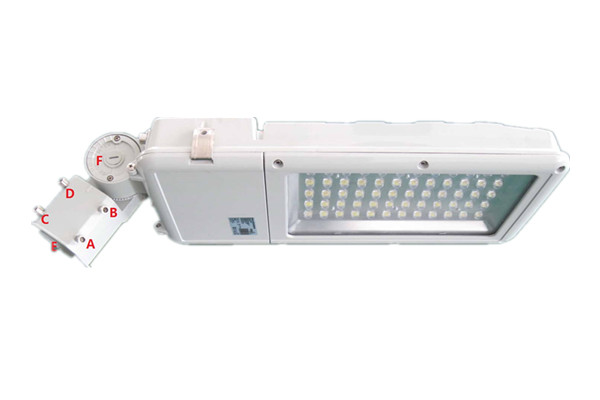

High Lumen LED Street Light-FAN series (30-120W)
High Lumen LED Street Light, High Power LED Street Light,Brightest LED Lamp
Description
Reviews
Key Features
●Energy saving and environment protection:compare with the traditional led street light , can save energy 70%;light source has no mercury, no ultraviolet radiation, temperature of casing is low, can reduce the heat dissipation, life time can reach 50000 hours.
● Integrated design of the system (radiator is the casing).adequate assurance the heat conduction of LED, heat dissipation, and the life time of the light.
●Huge heat dissipation area can assurance the led working junction temperature Tj<50℃(Ta=25℃)。
●Optics software analysis ,make the light meet the demand of the street lighting standard
Ÿ High bright led and high light efficiency,, led lumen output >120lm/w. and lamp efficiency >85%
●CRI>75:the object can be more clear and more verisimilar.
● More color can choose
●High efficiency driver,PF≥0.98;THD≤10%,working voltage 90-265VAC,50-60HZ
●Huge heat dissipation area can assurance the led working junction temperature Tj<50℃(Ta=25℃)。
●Optics software analysis ,make the light meet the demand of the street lighting standard
Ÿ High bright led and high light efficiency,, led lumen output >120lm/w. and lamp efficiency >85%
●CRI>75:the object can be more clear and more verisimilar.
● More color can choose
●High efficiency driver,PF≥0.98;THD≤10%,working voltage 90-265VAC,50-60HZ
Applications
The city road, square, park ,village road
Specifications
Model | BD-560030SJN | BD-560060SJN | BD-560090SJN | BD-560120SJN |
LED Power | 30W | 60W | 90W | 120W |
Input voltage | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC |
Input frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
LED lumen | 100Lm/W | 100Lm/W | 100Lm/W | 100Lm/W |
Lamp efficiency | ≥80% | ≥80% | ≥80% | ≥80% |
Driver efficiency | 89% | 89% | 89% | 89% |
Power factor | ≥0.98 | ≥0.98 | ≥0.98 | ≥0.98 |
THD | <10% | <10% | <10% | <10% |
Color | 2700~7000k | 2700~7000k | 2700~7000k | 2700~7000k |
CRI | ≥75 | ≥75 | ≥75 | ≥75 |
IP grade | IP65 | IP65 | IP65 | IP65 |
Working temperature | -40~50℃ | -40~50℃ | -40~50℃ | -40~50℃ |
Working humidity | 10~90%RH | 10~90%RH | 10~90%RH | 10~90%RH |
Beam angle | 120° | 120° | 120° | 120° |
Lifetime | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs |
Material | Aluminum | Aluminum | Aluminum | Aluminum |
