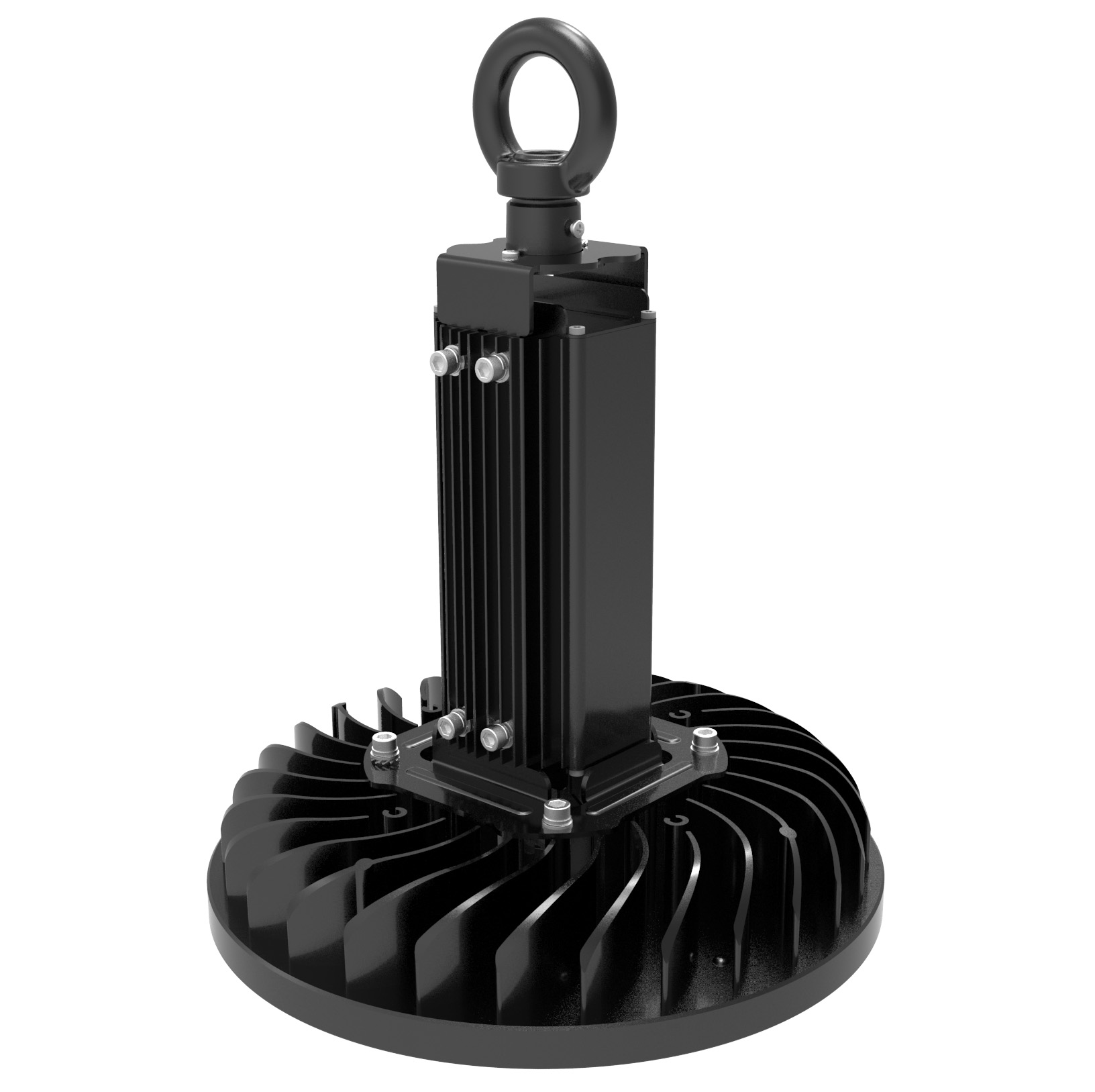

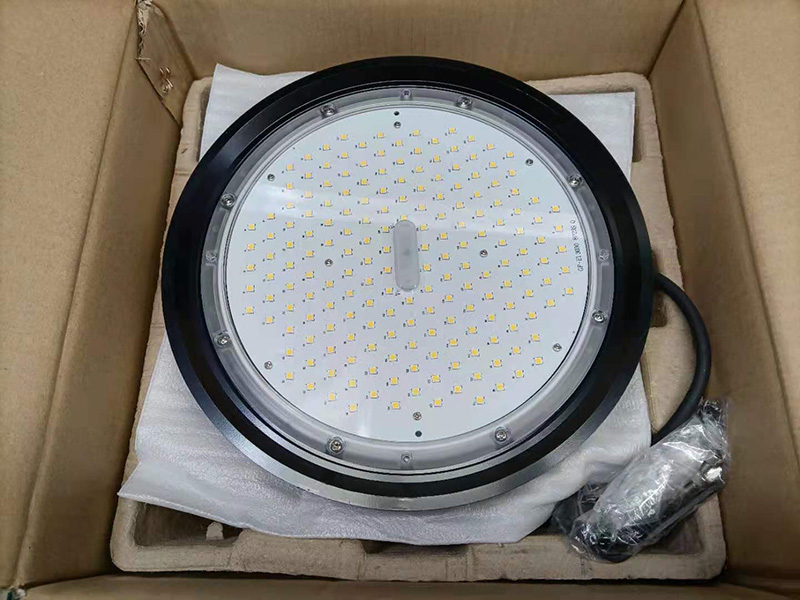

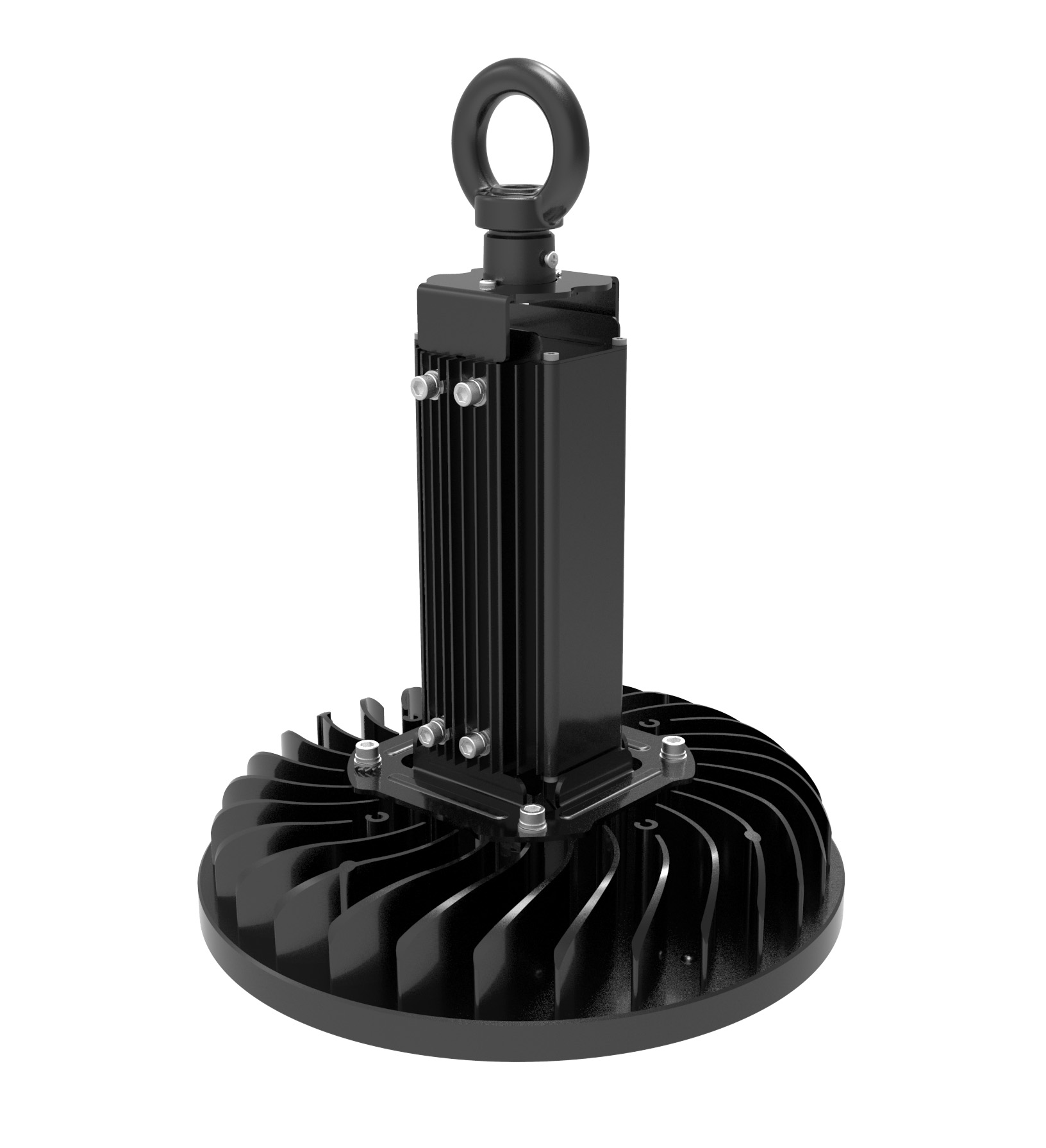

Flexible installation High lumen LED High Bay Light-UFO 100W 150W 200W
Description
Reviews
Key Features
● Integration, minimalist & toughness design
● Integrated cold forging technology, precise plasticity
● Improve the lamp’s mechanical capacity and structural intensity
● Flexible installation way: Available with tube installation,hanging and angle bracket installation
● Using higher purity industrial aluminum which is anti-corrosion & high-thermal conductivity
● The complete lamp with electrophoretic processing, which has excellent anti-corrosion,stainless performance, and suitable for multi-complex working conditions.
Applications
Workshop, factory, warehouse, highway toll station, gas station, super market, exhibition hall, gymnasium and other industrial lighting place
Specifications
|
Product Model |
BD-540100UP |
BD-540150UP |
BD-540200UP |
|
Rated Power |
100W |
150W |
200W |
|
Frequency Range |
50/60HZ |
50/60HZ |
50/60HZ |
|
Power Factor |
≥0.9 |
≥0.9 |
≥0.9 |
|
Efficiency (lm/W) |
140-150Lm/w |
140-150Lm/w |
140-150Lm/w |
|
Luminous Flux(lm) |
13000Lm±5% |
1８000Lm±5% |
2５000Lm±5% |
|
Working Temp |
-40°C—50°C |
-40°C—50°C |
-40°C—50°C |
|
Working Humidity |
10%~90% |
10%~90% |
10%~90% |
|
Color Temperature |
2700-6500K |
2700-6500K |
2700-6500K |
|
Color Rendering Index |
Ra≥75 |
Ra≥75 |
Ra≥75 |
|
Life Span |
≥50000Hrs |
≥50000Hrs |
≥50000Hrs |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
|
Net weight |
2.5kg |
3.2kg |
3.2kg |
|
Gross weight |
3.0kg |
4.0kg |
4.0kg |
|
Packing size(mm) |
330*300*180mm |
330*300*180mm |
330*300*180mm |
