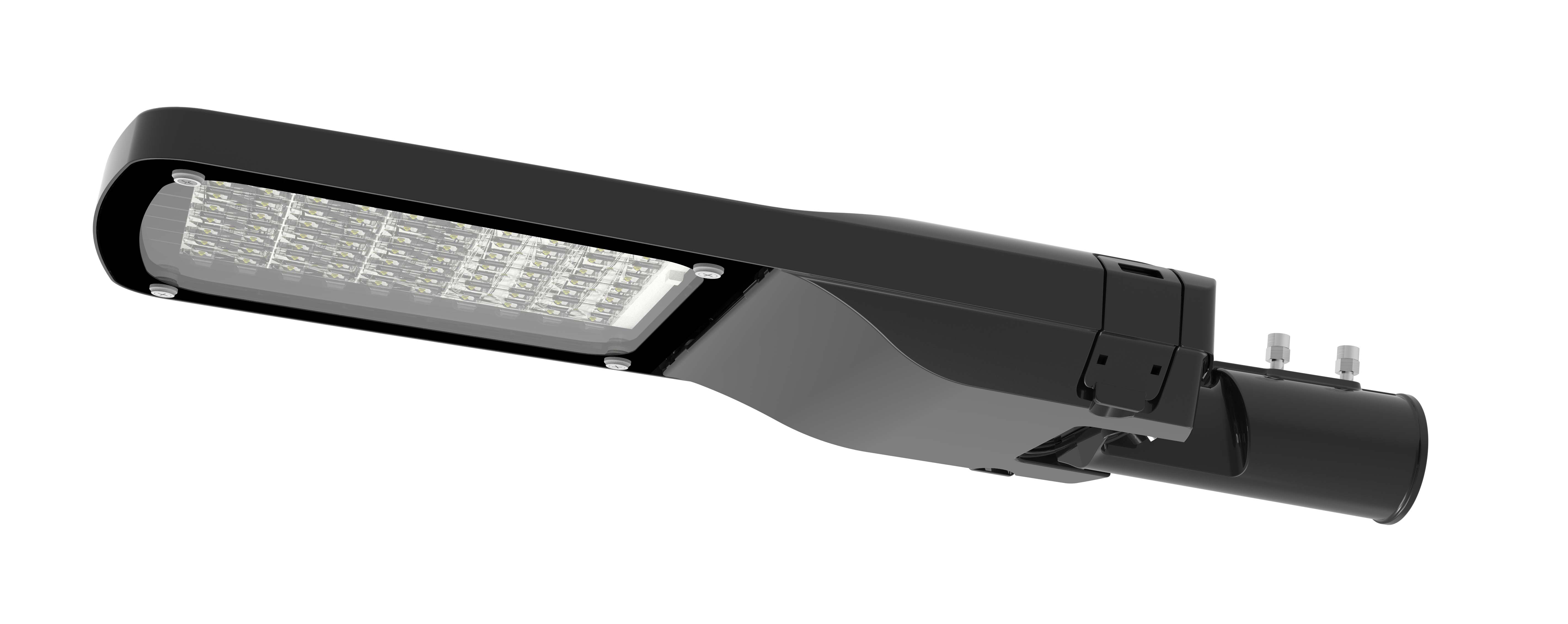

Flat LED Street Light Toolless Clips Opening 80W 100W
Description
Reviews
Key Features
● Patented modern and fashionable streamline design
● Smooth type of roof is for excellent self-cleaning, to avoid bird droppings, failing leaves and sand storms.
● Rib-free outside housing, but good heat sink technology to enable the whole body with heat dissipation and to make sure that LED component is working
● At lower junction temperature.
● High quality ADC 12 aluminium die-casting and power painting
● Top brand of LED components, CREE XTE or Lumileds 5050SMD
● Correct optic lense family from LEDiL or LedLink to satisfy and kind of road requirement
● High quality LED power supply from Meanwell or Inventronics with 5-years warranty, including 6KV of surge protection, 10/20KV is possible with aditional SPD.
● Toolless clips of opening for easy maintenance.
Applications
The streets main roads, secondary road, expressway, the national roads, square, factories and other
lighting place
Specifications
| Product Code | LBD-S07M-80 | LBD-S07M-100 |
| Input Wattage | 80W | 100W |
| Color Temperature | 3000-6500K | 3000-6500K |
| Luminous Flux | 10400Lm±5%/ | 13000Lm±5%/ |
| Input Voltage | AC100-277V | AC100-277V |
| Frequency Range | 50/60Hz | 50/60Hz |
| Power Factor | PF≧0.9 | PF≧0.9 |
| color rendering index | Ra≧70 | Ra≧70 |
| Temperature of Working Condition | -40--50℃ | -40--50℃ |
| Humidity of Working Condition | 20%-90% | 20%-90% |
| LED Lifetime | 50000h | 50000h |
| Protectin Grade | IP66 | IP66 |
| Installation Pipe Diameter | φ60mm | φ60mm |
| Installation Height | 6-8m | 8-10m |
| Net Weight | 6.0kg | 6.0kg |
| Gross Weight | 6.50kg | 6.50kg |
| Packing Size | 670*310*155mm | 670*310*155mm |
