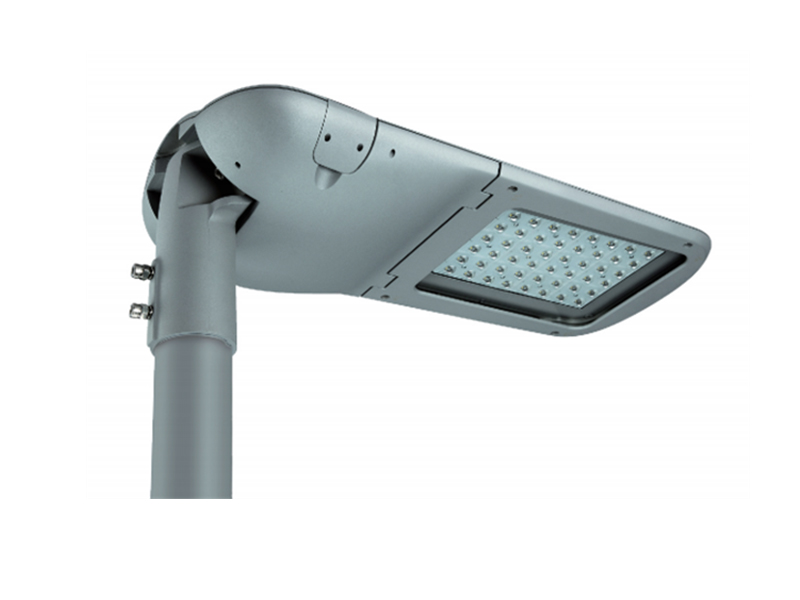

Philips LED street light


● High Lumens Efficiency
● 5 Years Warranty.
Philips LED street light

Description

Reviews

Specifications
Superline LED Street lights are a result of genuine cooperation with the clients, modern and fashionable stream designed LED street light, High-quality ADC-12 aluminum die-casting, and powder painting, which are always charming on urban roads. They have a smooth type of roof for excellent self-cleaning, to avoid bird dropping, falling leaves, and sand storms.
Well, thanks to the toolless opening clips, we can easily open the driver chamber for easy maintenance. They equipped with high quality LED power supply from Philips, including 6KV of surge protection, 10/20KV is possible with additional SPD. And with the help of optic lens, these LED lights, used top brand LED chips such as Cree XTE or Lumileds 5050 for main lighting source, can apply to kinds of road lighting requirements.
With the confidence in the prefect structure and good heat sink technology, we can ensure a long lifetime, 5 years warranty is always committed to our global customers.
Key Features
● Patented modern and fashionable streamline design
● Smooth type of roof is for excellent self-cleaning, to avoid bird droppings,falling leaves and sand storms.
● Rib-free outside housing,but good heat sink technology to enable the whole body with highest rate of heat
● Dissipation and to make sure that LED component is working at lower junction temperature.
● High quality ADC 12 aluminum die-casting and power painting.
● Top brand of LED components,CREE XTE or Lumileds 5050SMD
● Correct optic lens family from LEDiL or LedLink to satisfy any kind of road requirement
● High quality LED power supply from Philips, Invenonics, including 6KV surge protection.

● Toolless clips of opening for easy maintenance.

Applications

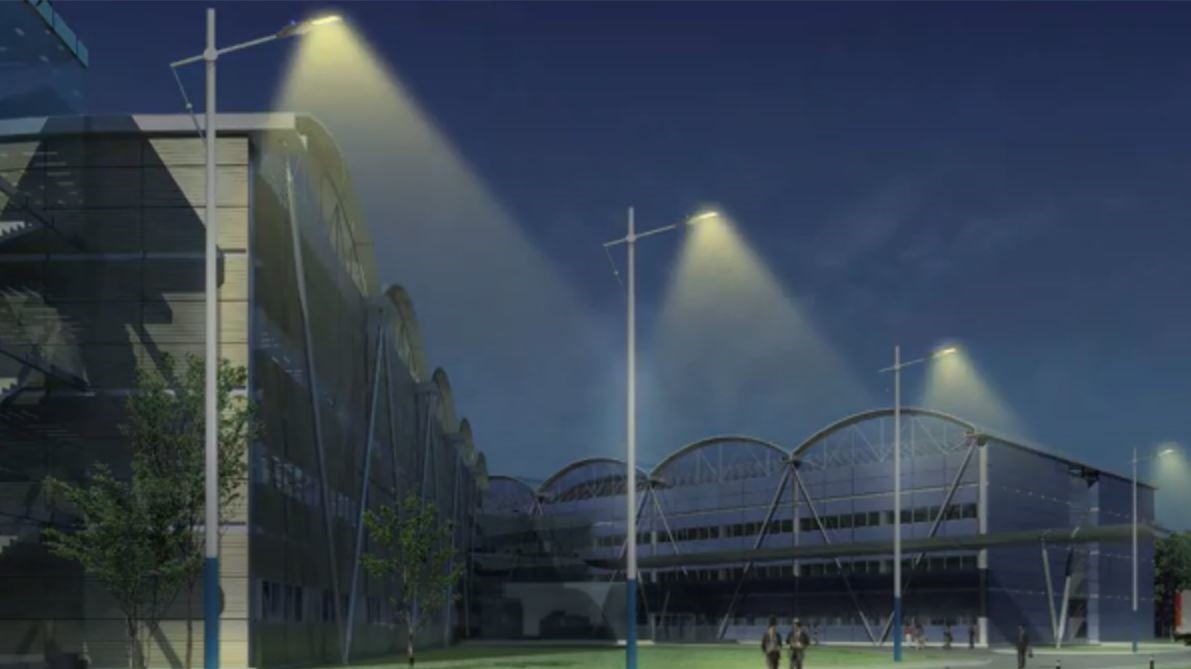

The streets main roads, secondary road, expressway, the national roads, square, factories and other lighting places

Specifications
Product Model LBD-S05-90 LBD-S05-100 LBD-S05-120
Rated Power 90W 100W 120W
Frequency Range 50/60HZ 50/60HZ 50/60HZ
Power Factor ≧0.9 ≧0.9 ≧0.9
Efficiency (lm/W) 130-150Lm/w 130-150Lm/w 130-150Lm/w
Luminous Flux(lm) 12600Lm±5% 14000Lm±5% 16800Lm±5%
Working Temp -40°C—50°C -40°C—50°C -40°C—50°C
Working Humidity 10%~90%RH 10%~90%RH 10%~90%RH
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Color Rendering Index Ra≥70 Ra≥70 Ra≥70
Life Span ≥50000Hrs ≥50000Hrs ≥50000Hrs
Protection Grade IP66 IP66 IP66
Net Weight(kg) 7.3kg 7.3kg 7.3kg
Gross Weight(kg) 8.3kg 8.3kg 8.3kg
Package box size(mm) 780*370*200mm 780*370*200mm 780*370*200mm
