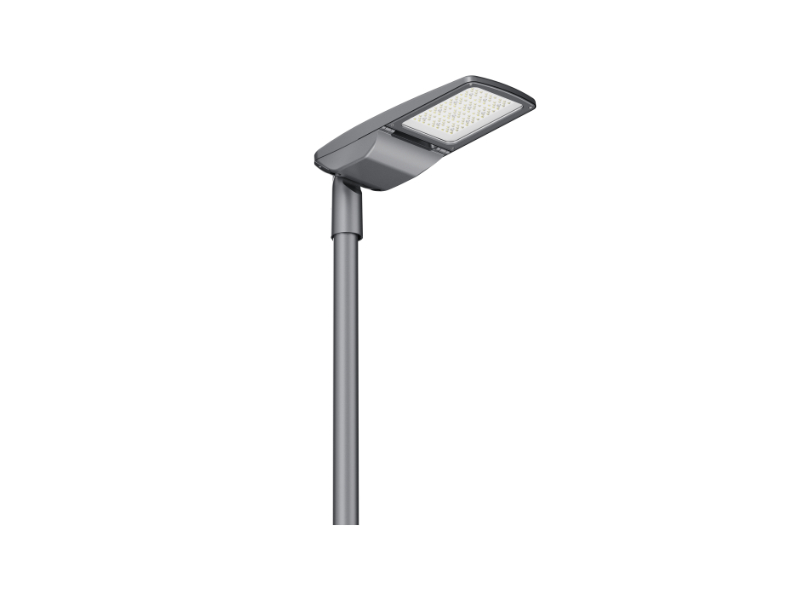

LED Street Light Pipeline Series

30W~240W LED Street Light Pipeline Series

30W~240W LED Street Light Pipeline Series

Description

Reviews

Main Features

1. Smooth type of roof is for excellent self-cleaning, to avoid bird droppings, falling leaves, and sand storms.

2. Dissipation and to make sure that LED component is working at lower junction temperature.

3. High quality ADC 12 aluminum die-casting and power painting.

4. Top brand of LED components, CREE XTE or LumiLEDs 3030SMD

5. Correct optic lens family from LEDiL or LEDLink to satisfy any kind of road requirement

6. High-quality LED power supply from Meanwell,Philips or Inventronics with a 5-year warranty, including 10KV of surge

7. Toolless clips of opening for easy maintenance.

Product Code LBD-S12-60 LBD-S12-100 LBD-S12-150 LBD-S12-200 LBD-S12-240
Input Wattage 30-60W 80-100W 120-150W 180-200W 200-240W
LED quantity 144 216 288 384 576
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Flux Efficiency 170-180lm/w 170-180lm/w 170-180lm/w 170-180lm/w 170-180lm/w
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≧0.9 PF≧0.9 PF≧0.9 PF≧0.9 PF≧0.9
color rendering index Ra≧70 Ra≧70 Ra≧70 Ra≧70 Ra≧70
Temperature of Working Condition -40--50℃ -40--50℃ -40--50℃ -40--50℃ -40--50℃
Humidity of Working Condition 20%-90% 20%-90% 20%-90% 20%-90% 20%-90%
LED Lifetime 100,000h 100,000h 100,000h 100,000h 100,000h
Protectin Grade IP66 IP66 IP66 IP66 IP66
IK IK09 IK09 IK09 IK09 IK09
Installation Pipe Diameter φ60mm φ60mm φ60mm φ60mm φ60mm
Installation Height 4-6m 6-8m 8-10m 10-12m 10-12m
Product Size 572*230*97mm 642*250*97mm 693*250*97mm 727*290*97mm 828*290*97mm
